Apex Process Orchestration and Monitoring with Platform Events

When it comes to implementing asynchronous workloads in Apex developers have a number of options such as Batch Apex and Queueable, each can be driven by user or system driven actions. This blog focuses on some of the more advanced aspects of implementing async workloads using Platform Events and Apex.

In comparison to other approaches, implementing asynchronous workloads using Platform Events offers two unique features. The first helps you better dynamically calibrate and manage resources based on data volumes to stay within limits, while the second feature provides automatic retry capabilities when errors occur. Lastly I want to highlight an approach I used to add some custom realtime telemetry to the workload using Platform Events.

Side Note: Before getting into the details, the goal of this blog is not to say one async option is better than another, rather to highlight the above features further so you can better consider your options. I also include a short comparison at the end of this blog with Batch Apex.

Business Scenario

Lets imagine the following scenario to help illustrate the use of the features described below:

  • Business Process
    Imagine that your business is processing Invoice generation on the platform and that the Orders that drive this arrive and are updated constantly.
  • Continuous Processing
    In order to avoid backlogs or spikes of invoices being processed, you want to maintain a continuous flow of the overall process. For this you create a Platform Event called Generate Invoice. This event can easily be sent by an admin / declarative builders who have perhaps setup some rules on the Orders object using Process Builder.
  • Resource Management
    Orders arrive in all shapes and sizes, meaning the processing required to generate Invoices can also vary when you consider variables such as number of order lines, product regional discounts, currencies and tax rules etc. Processing each one at time per execution context is an obvious way to maximize use of available resources and is certainly an option, but if resources allow, processing multiple invoices in one execution context is more efficient.

Below is what the Generate Invoice Platform Event looks like, it simply has a reference to the Order Id (though it could equally reference an External Id on the Order object).

For the purposes of this blog we are not focusing on how the events are sent / published. You can publish events using programatic API’s on or off platform or using one of the platforms declarative tools, there are in fact many ways to send events. For this blog we will just use a basic Apex snippet to generate the events as shown below.

List<GenerateInvoice__e> events = new List<GenerateInvoice__e>();
for(Order order :
       [select Id from Order
          where Invoiced__c != true
          order by OrderNumber asc]) {
   events.add(new GenerateInvoice__e(OrderId__c = order.Id));
}
EventBus.publish(events);

Here is a basic Apex handler for the above Platform Event that delegates the processing to another Apex class:

trigger GenerateInvoiceSubscriber on GenerateInvoice__e (after insert) {
    Set<Id> orderIds = new Set<Id>();
    for (GenerateInvoice__e event : Trigger.New) {
        orderIds.add(event.OrderId__c);
    }
    OrderService.generateInvoices(orderIds);
}

Processing Chunks of Events and Handling Retries

The following diagram highlights how a more advanced version of the above Apex handler can be used to optimally work within the limits to process chunks of Orders based on their size/complexity and also retry those that result in some errors along the way.

In order to orchestrate things this way you need to use some Apex API’s in your handler logic to let the platform know a few things. At the end of this blog I also share how I added telemetry to better visualize this along with a video. So don’t worry at this juncture if its not 100% clear how what you are seeing below is possible, just keep reading and watching!

Controlling how many Events are passed to your handler

Imagine the above code snippet published 1000 events. The platform docs state that it can pass up to a maximum of 2000 events to an Apex event handler at once, meaning the above will be invoked once. If you have been on the platform a while you will know that 200 (not 2000) is common number used to expressed a minimum number of records you should use when testing Apex Triggers and general bulkkification best practice. So why 2000 in the case of platform event handlers? Well the main aim of the platform is to drain the Platform Event message queue quickly and so it attempts to give the handler as much as possible, just in case it can process it.

As we have set out in our scenario above, Orders can be quite variable in nature and thus while a batch of 1000 orders with only a few order lines might be possible within the execution limits, include few orders in that batch with 100’s or a few thousand line items and its more likely you will hit CPU or heap limits. Fortunately, unlike Batch Apex, you get to control the size of each individual chunk. This is done by effectively giving some of the 1000 block of events passed to your handler back to the platform to pass back in a separate handler invocation where the limits are reset.

Below is some basic code that illustrates how you might go about pre-scanning the Orders to determine complexity (by number of lines) and thus dynamically calibrating how many of the events your code can really process within the limits. The orderIds list that is passed to the service class is reset with the orders that can be processed. The key part here is the use of the setResumeCheckpoint method that tells the platform where to resume from after this handler has completed its processing.

trigger GenerateInvoiceSubscriber on GenerateInvoice__e (after insert) {

    // Determine number overall order lines to process
    //   vs maximum within limits (could be config)
    Integer maxLines = 40000;
    Set<Id> orderIds = new Set<Id>();
    for (GenerateInvoice__e event : Trigger.New) {
        orderIds.add(event.OrderId__c);
    }
    Map<Id, Integer> lineCountByOrderId =
        new OrdersSelector().selectLineCountById(orderIds);

    // Bulkify events passed to the OrderService
    orderIds = new Set<Id>();
    Integer lineCount = 0;
    for (GenerateInvoice__e event : Trigger.New) {
        orderIds.add(event.OrderId__c);
        EventBus.TriggerContext.currentContext().setResumeCheckpoint(event.ReplayId);
        lineCount = lineCount + lineCountByOrderId.get(event.OrderId__c);
        if(lineCount>maxLines) {
            break;
        }
    }

    OrderService.generateInvoices(orderIds);
}

You can read more about this approach in the formal documentation here.

Implementing Retry Logic

There are a number of reasons errors can occur when your handler code is running. For errors that represent transient situations, such as timeouts and row locks for example, you would normally have to ask the user to retry (via email or notification) or utilize a dynamically scheduled job to retry. With Platform Event handlers in Apex, when the system RetryableException is thrown the Platform will automatically retry a batch events after period of time, up to 9 times (the batch sizes may vary between attempts). It is generally recommended that you do not let your code retry above 6, since when the maximum is reached the platform deactivates the handler/trigger.

The following code is basic illustration of how to use this facility and track the number of retries before reaching the max. In this example if the soft maximum is reached the events are effectively just lost in this case or if needed you can write them to a staging custom object for resubmission or just simply have some code such as the above scan for unprocessed Orders and resubmit events.

    // Invoke OrderService, support retries
    try {
        OrderService.generateInvoices(orderIds);
    } catch (Exception e) {
        // Only retry so many times, before giving up (thus avoid disabling the trigger)
        if (EventBus.TriggerContext.currentContext().retries < 6) {
            throw new EventBus.RetryableException(e.getMessage());
        }
        // In this case its ok to let the events drain away...
        //   since new events for unprocessed Orders can always be re-generated
    }

Using Platform Events to monitor activity

I used Platform Events to publish telemetry about the execution of the above handlers, by creating another Platform Event called Subscriber Telemetry and used a Lightning Web Component to monitor the events in realtime. Because Platform Events can be declared as being outside the standard Apex Transaction they are sent immediately using the “Publish Immediately” setting, they are sent even if an error occurs.

To publish to this event I simply added the following snippet of code to the top of my handler.

// Emit telemetry
EventBus.publish(
    new SubscriberTelemetry__e(
        Topic__c = 'GenerateInvoice__e',
        ApexTrigger__c = 'GenerateInvoiceSubscriber',
        Position__c =
           [select Position from EventBusSubscriber
              where Topic = 'GenerateInvoice__e'][0].Position,
        BatchSize__c = Trigger.new.size(),
        Retries__c = EventBus.TriggerContext.currentContext().retries,
        LastError__c = EventBus.TriggerContext.currentContext().lastError));

The following video shows me clicking a button to publish a batch of 1000 events, then monitoring the effects on my chunking logic and retry logic. The video actually includes me fixing some data errors in order to highlight the retry capabilities. The errors shown are contrived by some deliberately bad code to illustrate the retry logic, hence the fix to the Order records looks a bit odd, so please ignore that. Finally note that the platform chose to send my handler 83 events first then larger chunks thereafter, but in other tests I got 1000 events in the first chunk.

Batch Apex vs Platform Events

Batch Apex also provides a means to orchestration sequentially the processing of records in chunks, so I thought I would end here with a summary of some of the other differences. As you can see one of the key ones to consider is the user identity the code runs as. This is not impossible to workaround in the platform event handler case, but requires some coding to explicitly set the OwnerId field on records if that information is important to you. Overall though I do feel that Platform Events offers some useful options for switching to a more continuous mode of operation vs batch, so long as your aware of the differences this might be a good fit for you.

Side Note: For Apex Queueable handlers you will soon have the option to implement so called Transaction Finalizers that allow you to implement retry or logging logic.


2 Comments

The Third Edition

bookI’m proud to announce the third edition of my book has now been released. Back in March this year I took the plunge start updates to many key areas and add two brand new chapters. Between the 2 years and 8 months since the last edition there has been several platform releases and an increasing number of new features and innovations that made this the biggest update ever! This edition also embraces the platforms rebranding to Lightning, hence the book is now entitled Salesforce Lightning Platform Enterprise Architecture.

You can purchase this book direct from Packt or of course from Amazon among other sellers.  As is the case every year Salesforce events such as Dreamforce and TrailheaDX this book and many other awesome publications will be on sale. Here are some of the key update highlights:

  • Automation and Tooling Updates
    Throughout the book SFDX CLI, Visual Studio Code and 2nd Generation Packaging are leverage. While the whole book is certainly larger, certain chapters of the book actually reduced in size as steps previously reflecting clicks where replaced with CLI commands! At one point in time I was quite a master in Ant Scripts and Marcos, they have also given way to built in SFDX commands.
  • User Interface Updates
    Lightning Web Components is a relative new kid on the block, but benefits greatly from its standards compliance, meaning there is plenty of fun to go around exploring industry tools like Jest in the Unit Testing chapter. All of the books components have been re-written to the Web Component standard.
  • Big Data and Async Programming
    Big data was once a future concern for new products, these days it is very much a concern from the very start. The book covers Big Objects and Platform Events more extensibility with worked examples, including ingest and calculations driven by Platform Events and Async Apex Triggers. Event Driven Architecture is something every Lightning developer should be embracing as the platform continues to evolve around more and more standard platforms and features that leverage them.
  • Integration and Extensibility
    A particularly enjoyed exploring the use of Platform Events as another means by which you can expose API’s from your packages to support more scalable invocation of your logic and asynchronous plugins.
  • External Integrations and AI
    External integrations with other cloud services are a key part to application development and also the implementation of your solution, thus one of two brand new chapters focuses on Connected Apps, Named Credentials, External Services and External Objects, with worked examples of existing services or sample Heroku based services. Einstein has an ever growing surface area across Salesforce products and the platform. While this topic alone is worth an entire book, I took the time in the second new chapter, to enumerate Einstein from the perspective of the developer and customer configurations. The Formula1 motor racing theme continued with the ingest of historic race data that you can run AI over.
  • Other Updates
    Among other updates is a fairly extensive update to the CI/CD chapter which still covers Jenkins, but leverages the new Jenkins Pipeline feature to integrate SFDX CLI. The Unit Testing chapter has also been extended with further thoughts on unit vs integration testing and a focus on Lightening Web Component testing.

The above is just highlights for this third edition, you can see a full table of contents here. A massive thanks to everyone involving for providing the inspiration and support for making this third edition happen! Enjoy!


32 Comments

Getting your users attention with Custom Notifications

customnotificationsummaryGetting your users attention is not always easy, choosing how, when and where to notify them is critical. Ever since Lightning Experience and Salesforce Mobile came out the notification bell has been a one stop shop for Chatter and Approval notifications, regardless if you are on your desktop or your mobile device.

In beta release at time of writing is a new platform feature known as Notification Manager that allows you to send your own custom notifications to your users for anything your heart desires from the very same locations, even on a users mobile device! This blog dives into this feature and how you can integrate it into your creations regardless if you are a admin click coder, Apex developer or REST API junkie.

Getting Started

The first thing you need to do is define a new Notification Type under the Setup menu. This is a simple process that involves giving it a name and deciding what channels you want the notification to go out on, currently user desktop and mobile devices.

notificationstypes

Once this has been done you can use the new Send Custom Notification action in Process Builder or Flow. This allows you to define the title and body of your notification, along with the target recipients (users, groups, queues and more) along the target record that determines the record the user sees when they click/tap the notification. The following screenshot shows an example of such an Action in Process Builder:-

opportunitycustomnotification


Basically that is all there is to it! You will have in a few clicks empowered yourself with the ability to reach out to not only your users desktop but the actual mobile device notification experience on each of the their mobile devices!  You didn’t have to learn how to write a mobile app, figure out how to do mobile notifications, register things with Google or Apple. I am honestly blown away at how easy and powerful this is!

So it is pretty easy to to send notifications this way from Process Builder processes driven by record updates from the user and also reference field values to customize the notification text. However in the ever expanding world of Platform Events, how do we send custom notifications based on Platform Events?

Sending Custom Notifications for Batch Apex Job Failures

One of my oldest and most popular blog posts discussed design best practices around Batch Apex jobs. One of the considerations it calls out is how important it is to route errors that occur in the background back to the user. Fast forward a bit to this blog, where I covered the new BatchApexError Platform Event as a means to capture and route batch errors (even uncatchable exceptions) in near realtime. It also describes strategy to enabled users to retry failed jobs. What it didn’t really solve, is letting them know something had gone wrong without them checking a custom tab. Let’s change that!

Process Builder is now able to subscribe to the standard BatchApexErrorEvent and thus enables you as an admin to apply filter and routing logic on failed batch jobs. When combined with custom notifications those errors can now be routed to users devices and/or desktops in realtime. While Process Builder can subscribe to events it does have some restrictions on what it can do with the event data itself. Thus we are going to call an autolaunch Flow from Process Builder to actually handle the event and send the custom notification from within Flow. If you are reading this wondering if your Apex code can get in on the action, the answer is yes (ish), more on this later though. The declarative solution utilizes one Process Builder process and two Flows. The separation of concerns between them is shown in the diagram below:-

batchapexeventtonotificationarch

Let’s work from the bottom to the top to understand why I decided to split it up this way. Firstly, SendCustomNotification is a Sub Flow (callable by other Flows) and is a pretty simple wrapper around the new Send Custom Notification action shown above. You can take a closer look at this later through the sample code repository here.

SendCustomNotification

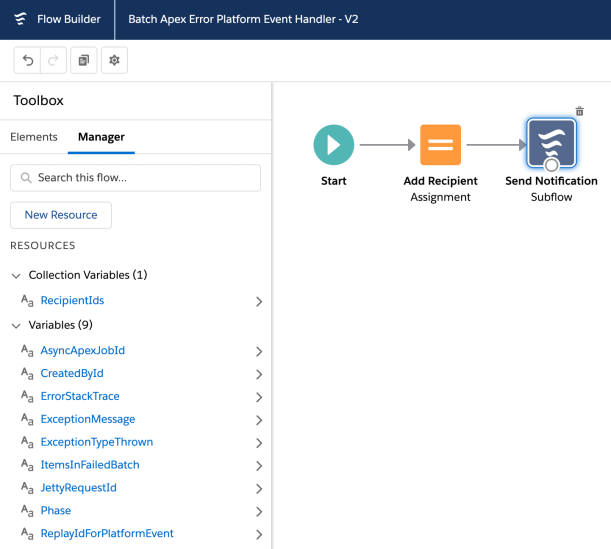

Next the BatchApexErrorPlatformEventHandler Flow defines a set of input variables that are populated from the Process Builder process. These variables match the fields and types per the definition of the Batch Apex Error Event here. The only other thing it does is add the Id of the user that generated the event (aka the user who submitted the failed job) to the list of recipients passed to the SendCustomNotification sub flow above. This could also be a Group Id if you wanted to send the notification further.

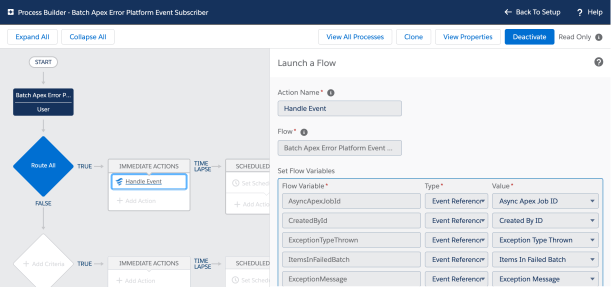

Lastly, in the screenshot below you see the Process Builder that subscribes to the Batch Apex Error Event and maps the event field values to the input variables exposed from BatchApexErrorPlatformEventHandler Flow via the EventReference. The example here is very simple, but you can now imagine how you can add other filter criteria to this process that allows you to inspect which Batch Apex job failed and route and/or adjust messaging in the notifications accordingly, all done declaratively of course!


NOTE: It is not immediately apparent in all cases that you can access the event fields from Process Builder, since the documentation states them as not supported within formulas. I want to give a shout out to Alex Edelstein PM for Flow for clarifying that it is possible! Check out his amazing blog around all things Flow here. Finally note that Process Builder requires an Object to map the incoming event to. In this case I mapped to a User record using the CreatedById field on the event.

Sending Custom Notifications from Code

The Send Custom Notification action is also exposed via the Salesforce Action REST API defined here (hint hint for Doug Ayers Mass Action tool to support it). You can of course attempt to call this REST API via Apex as well. While there is currently no native Apex Action API, it turns out calling the above SendCustomNotification Flow from Apex works pretty well meanwhile. I have written a small wrapper around this technique to make it a little more elegant to perform from Apex and it also serves to abstract away this hopefully temporary workaround for Apex developers.

new CustomNotification()
    .type('MyNotificationType')
    .title('Fun Custom Notification')
    .body('Custom Notifications are Awesome!')
    .sendToCurrentUser();

The following Apex code results in this notification appearing on your device!


This CustomNotification helper class is included in the sample code for this blog and leverages another class I wrote that wraps the native Apex Flow API. I used this wrapper because it allowed me to mock the actual Flow invocation since there is no way as far as I can see to assert the notification was actually sent.

NOTE: When sending custom notifications via declarative tools and/or via code I did confirm in my testing that they are included in the current transaction. Also I recommend you always avoid calling Flow in loops in your Apex code, instead make your Flows take list variables (aka try to bulkify Flows called from Apex). Though not shown in the Apex above, the wrapped Flow takes a list of recipients.

Summary

You can find all the code for this blog in sample code repository here. So there you have it, custom mobile and desktop notifications sent from Process Builder, Flow, Apex and REST API. Keep in mind of course at time of writing this is a Beta feature and thus read the clause in the documentation carefully. Now go forth and start thinking of all the areas you can enable with this feature!

P.S. Check out another new cool feature called Lightning In-App Guidance.






20 Comments

Platform Events and Lightning Components

UPDATE: There is now native support for this here.

Over the past few weeks i have been working with Platform Events in a number of my Lightning projects, such as the Custom Metadata Services and Event Logging. This component allows you to receive Platform Events in your own components.
streamingcmp
This component can be deployed from this repository here. I have been working on this for a while and I have yet to highlight this component on my blog. I wanted to rectify that now and I also wanted to take some time to explain lessons learned along the way and if anyone else has any thoughts on improving it even further!

Using the Component

Firstly using the component is very easy, you just need two attributes as you can see above. The channel defines the event and the onMessage attribute the handler for the event. I learnt along the way that if you define a registerEvent in your component it automatically exposes an attribute that takes a callback handler, much nicer for users of your component! The payload event parameter contains the platform event fields.
handleevent

Wrapping CometD in a Component World

The component uses the CometD JavaScript library internally. This library does require a certain amount of configuration and authentication tweaks to initialise (such as disabling WebSockets, since LEX does not currently support it). Also, as i found out eventually, code to unsubscribe from events is also needed.

In the Visualforce page examples this was less of a concern in a page centric world. In the world of components this becomes very important! Without it, i was finding that when i navigated around Lightning Experience and back to components using this component i would accumulate handlers, that would effectively appear to be repeating events, not good.

In order to find the correct moment to unsubscribe and disconnect, the component listens to the aura:valueDestroy event. This does not fire immediately however, so some additional defensive work in the internal handler is needed. I am certainly open to further comments on how to make this component more robust.

This Trialhead module also includes example code on how to use the CometD library in Lightning, though the result is not a generic component like the one in this blog. I am also less sure about its design in terms of unsubscribing only on page unload.

Summary

Access to creating, sending and receiving Platform Events are available in Apex, REST API’s, Process Builder and Flow. Hopefully one day we will see a platform provided Lightning Base Component to replace the one i have created here. Meanwhile have fun!
