Managing Dependency Injection within Salesforce

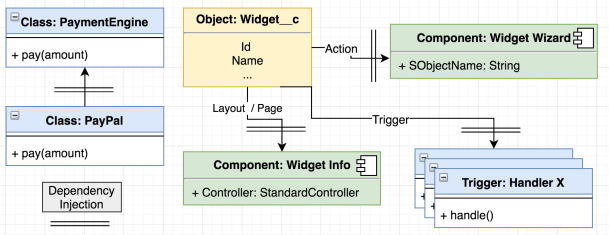

When developing within Salesforce, dependencies are formed in many ways, not just those made explicitly when writing code, but those formed by using declarative tools. Such as defining Actions and Layouts for example. This blog introduces a new open source library I have been working on called Force DI. The goal is to simplify and more importantly consolidate where and how to configure at runtime certain dependencies between Apex, Visualforce or Lightning component code.

Forming dependencies at runtime instead of explicitly during development can be very advantageous. So whether you are attempting to decompose a large org into multiple DX packages or building a highly configurable solution, hopefully, you will find this library useful!

So what does the DI bit stand for?

The DI bit in Force DI stands for Dependency Injection, which is a form of IoC (Inversion of Control). Both are well-established patterns for providing the runtime glue between two points, basically the bit in the middle. Let’s start with an Apex example. In order to use DI, you need to forgo the use of the “new” operator at the point where you want to do the injection. For example, consider the following code:-

PaymentEngine engine = new PayPal();

In the above example, you are explicitly expressing a dependency.  Which not only means you have to deploy or package all your payment engines together, but you have hardcoded a finite set you support and thus also forgone extensibility. With Force DI you can instead write

PaymentEngine engine = (PaymentEngine) di_Injector.Org.getInstance(PaymentEngine.class);

How does it know which class to instantiate then?

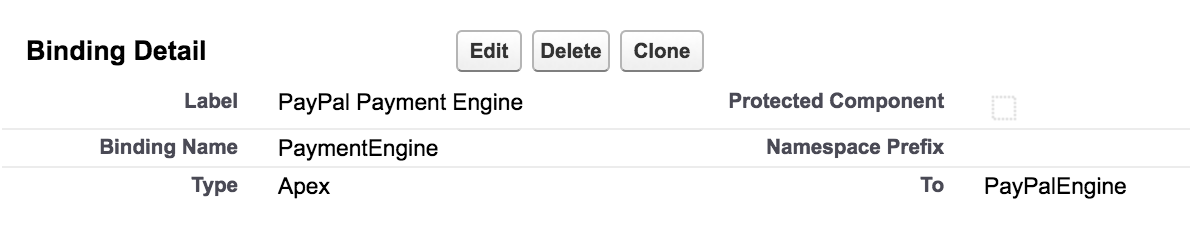

Whats happening here is the Injector class is using binding configuration (also dynamically discovered) to find out which class to actually instantiate. This binding configuration can be admin controlled, packaged (e.g. “PayPal Package”) and/or defined dynamically via code. Setting up binding config via code enables dynamic binding by reading other configuration (e.g. the user’s payment preference) and binding accordingly.

The key goal of DI is that calling code is not concerning itself with how an instance is obtained, only what it does with it. The following shows how a declarative binding is expressed via the libraries Binding Custom Metadata Type:-

If this all seems a bit indirect, that’s the point! Because of this indirection, you can now choose to deploy/package other payment gateway implementations independently from each other as well as be sure that everywhere your other code needs a PaymentEngine the implementation is resolved consistently. For a more advanced OOP walkthrough see the code sample here.

Can this help me with other kinds of dependencies?

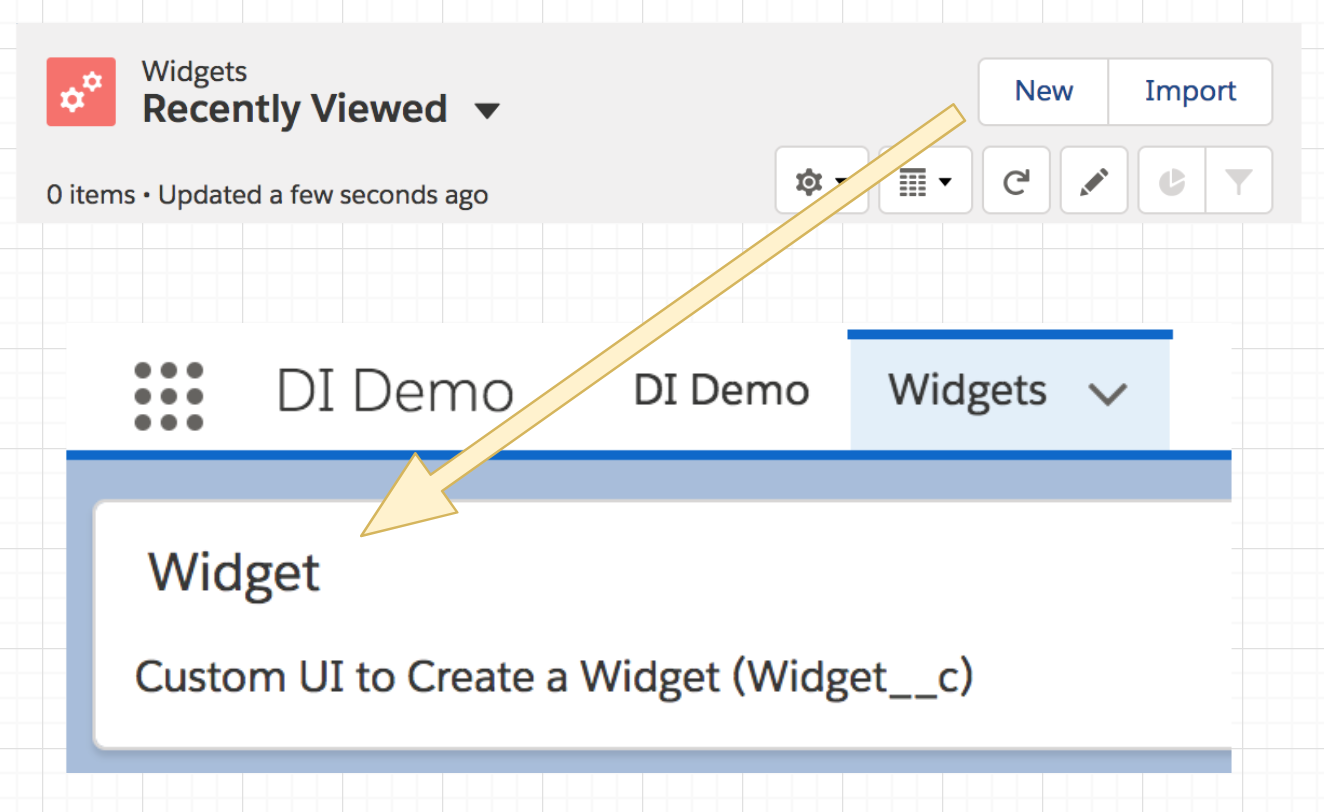

Yes! Let’s take an example of Lightning Component used as an Action Override. Typically you would create a Lightning Component and associate it directly with an action override. However, this means that the object metadata, action override and the Lightning code (as well as whatever is dependent on that) must travel around together. Rather than, for example, in separate DX packages. It also means that if you want to offer different variations of this action you would need to code all of that into the single component as well.

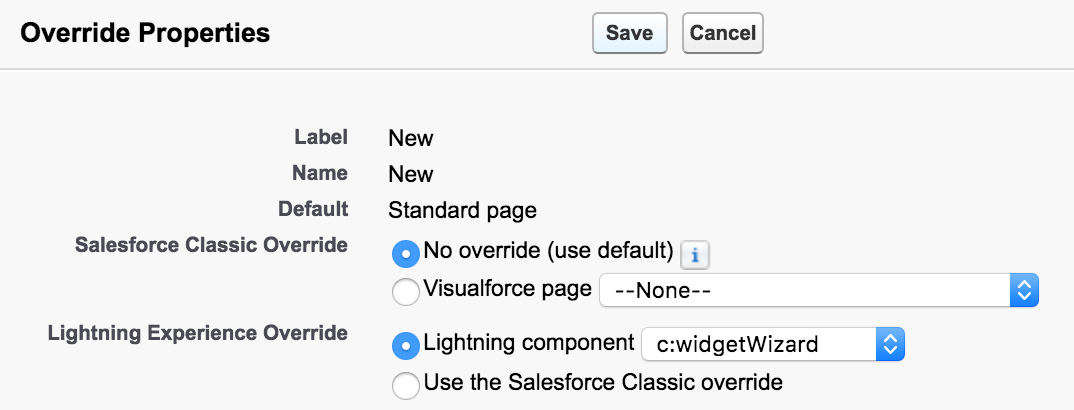

As before let’s review what the Lightning Component Action Override looks like without DI:-

<aura:component implements="lightning:actionOverride,force:hasSObjectName">
     <p class="slds-p-horizontal_small">Custom UI to Create a Widget ({!v.sObjectName})</p>

This component (and all its dependencies) would be directly referenced in the Action Override below:-

Now let us take a look at this again but using the Lightning c:injector component in its place:-

<aura:component implements="lightning:actionOverride,force:hasSObjectName">
   <c:di_injector bindingName="lc_actionWidgetNew">
      <c:di_injectorAttribute name="sObjectName" value="{!v.sObjectName}"/>

To make things clearer when reviewing Lightning Components in the org, the above component follows a generic naming convention, such as actionWidgetNew. This component is instead bound to the Action Override, not the above one and now looks like this:-

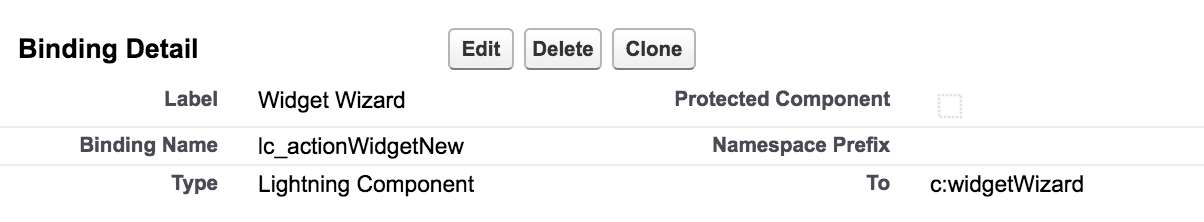

The binding configuration looks like this:-

Finally, the injected Lightning Component widgetWizard looks like this:-

   <aura:attribute name="sObjectName"type="String"/>
   <lightning:card title="Widget">
     <p class="slds-p-horizontal_small">Custom UI to Create a Widget ({!v.sObjectName})</p>

Note: You have the ability to pass context through to the bound Lightning Component just as the sObjectName attribute value was passed above. The c:injector component can be used in many other places such as Quick Actions, Lightning App Builder Pages, and Utility Bar. Check out this example page in the repo for another example.

What about my Visualforce page content can I inject that?

Visualforce used by Actions and in Layouts can be injected in much the same way as above, with a VF page acting as the injector proxy using the Visualforce c:injector component. We will skip showing what things looked like before DI, as things follow much the same general pattern as the Lightning Component approach.

The following example shows the layoutWidgetInfo page, which is again somewhat generically named to indicate its an injector proxy and not a real page. It is this page that is referenced in the Widget objects Layout:-

<apex:page standardController="Widget__c" extensions="di_InjectorController">
   <c:di_injector bindingName="vf_layoutWidgetInfo" parameters="{!standardController}"/>
The following shows an alternative means to express binding configuration via code. The ForceApp3Module class defines the bindings for a module/package of code where the Visualforce Component that actually implements the UI is stored. Note that the binding for vf_layoutWidgetInfo points to an Apex class in the controller, not the actual VF component to inject. The Provider inner class actually creates the specific component (via Dynamic Visualforce).
public class ForceApp3Module extends di_Module {

    public override void configure() {

        // Example named binding to a Visualforce component (via Provider)

        // Example SObject binding (can be used by trigger frameworks, see force-di-demo-trigger)

        // Example named binding to a Lightning component

NOTE: The above binding configuration module class is itself injected into the org-wide Injector by a corresponding custom metadata Binding record here. You can also see in the above example other bindings being configured, see below for more on this.

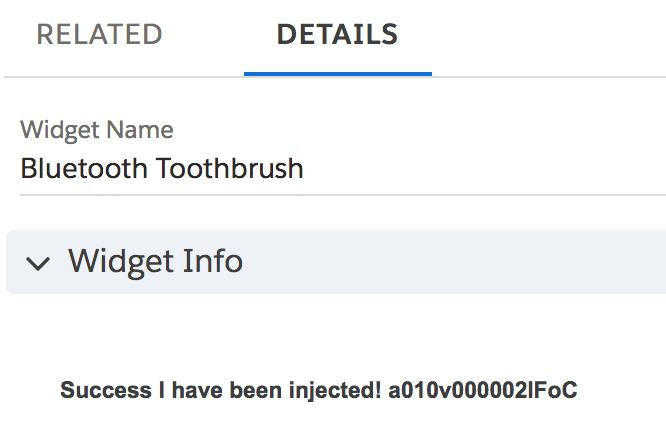

The actual implementation of the injected Visualforce Component widgetInfo looks like this:-

<apex:component controller="WidgetInfoController">
  <apex:attribute name="standardController"
     assignTo="{!StandardControllerValue}" description=""/>
  <h1>Success I have been injected! {!standardController.Id}</h1>

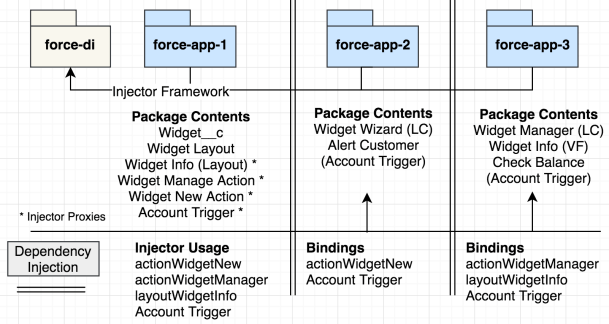

Decomposition Examples

The examples, shown above and others are contained in the sample repo. Each of the root package directories, force-app-1, force-app-2, and force-app-3 helps illustrate how the point of injection vs the runtime binding can be split across the boundaries of a DX package, thus aiding decomposition. The force-di-trigger-demo (not shown below) also contains a sample trigger handler framework using the libraries ability to resolve multiple bindings (to trigger handlers) in a given sequence, thus supporting the best practice of a single trigger per object.

Further Background and Features

I must confess when I started to research Java Dependency Injection (mainly via Java Guice) I was skeptical as to how much I could get done without custom annotation and reflection support in Apex. However, I am pretty pleased with the result and how it has woven in with features like Custom Metadata Types and how the Visualforce and Lightning Component injectors have turned out. A plan to write future Wiki pages on the associated GitHub repo to share more details on the Force DI API. Meanwhile here is a rundown of some of the more advanced features.

  • Provider Support
    Injectors by default only return one instance of the bound object, hence getInstance. Bindings that point to a class implementing the Provider interface (see inner interface) can override this. Which also allows for the construction of classes that do not have default constructors or types not supported by Type.forName. This feature also works in conjunction with the ability to pass a parameter via the Apex Injector, e.g. Injector.Org.getInstance(PaymentEngine.cls, someData);
  • Parameters
    Each of the three Injectors permits the passing of parameter/context information into the bound class or component. The examples above illustrate this.
  • Modules, Programmatic Binding Configuration and Injector Scopes
    Binding Modules group programmatic bindings and allow you to hook programmatically into the initialization of the Injector. Modules use the Fluent style interface to express bindings very clearly. The force-app-3 package in the repo uses this approach to define the bindings shown in the VF example above. You can also take a look at a worked example here of how local (one-off) Injectors can be used and here for a more complex OO example of conditional bindings works.
  • StandardController Passthrough
    For Visualforce Component injections the frameworks parameter passing capabilities supports passing through the instance of the StandardController from the hosting page into the injected component, as can be seen in the example above.
  • Binding Discovery by SObject vs Name
    The examples above utilize single bindings by a unique name. However, it is becoming quite common to adapt trigger frameworks to support DI and thus allow a single trigger to dynamically reach out to one or more handlers (perhaps installed in separate DX packages). This example shows how Force DI could be used in such a scenario.


This blog has hopefully wet your appetite to learn more! If so, head over to the repo and have a look through the samples in this blog and others. My next step is to wrap this up in a DX package to make it easier to get your hands on it, for now, download the repo and deploy via DX. I am also keen to explore what other aspects of Java Guice might make sense, such as the Linked Bindings feature.

Meanwhile, I would love feedback on the sample code and library thus far. Last but not least I would like to give a shout out to John Daniel and Doug Ayers for their great feedback during the initial development of the library and this blog. Enjoy!



Visual Flow with List View and Related List Buttons

Last years blog Clicks not Code with Visual Flow Custom Buttons has continued to be quite well received, so i thought i would explore what more could be done and address a few questions that have come up since. This blog does make some assumptions that you are already familiar with the approach from my previous blog.

This time i want to focus on using Visual Flows with list Custom Buttons, such buttons can be placed on List View layouts and Related List sections on Detail layouts. Salesforce also provides a means for the user to select specific records to process. These buttons apply to both Salesforce Classic and Salesforce Lighting Experience.


As before we are keeping in the spirit of Clicks not Code, well with a little bit of reusable Visualforce code. But don’t worry you can easily copy and paste to adapt with a few changes. Critically with this approach you don’t need to resort to JavaScript based Custom Buttons, which will no longer be supported in Lighting Experience.

Handling Record Lists from Custom Buttons

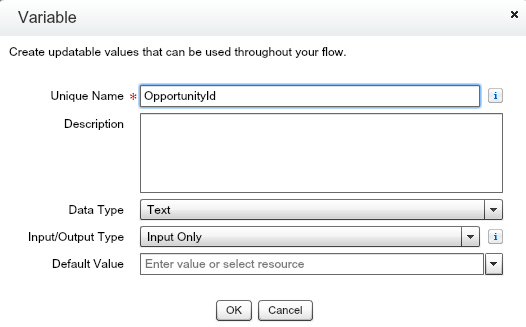

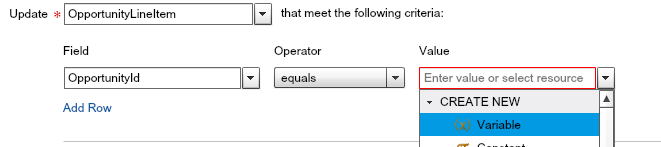

First things first, ensure you have created a SObjectCollection variable in your Flow and ensured its designated as Input. For this blog we are simply going to display a step in the UI for each selected record. Using the Loop and Screen elements. One thing to keep track of is the fields your referencing within the Flow, in this case i’m using Account Name and Annual Amount.


List View Custom Button Example

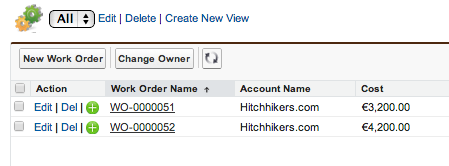

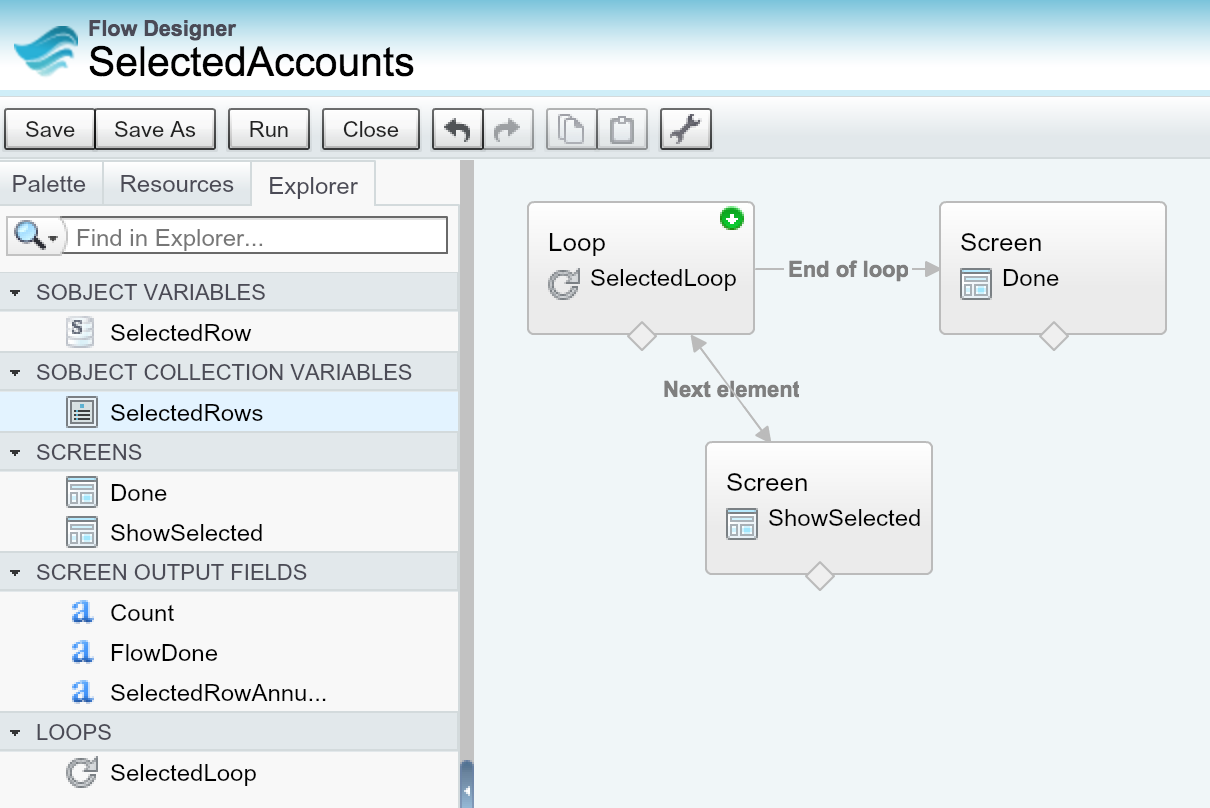

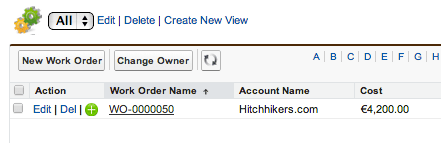

Lets get started with a Custom Button on the Account List View. When adding a List Custom Button you have two choices, do you want the user to be able to select records or not? If not, then your button will pass all the records in the List View (currently limited to 2000).

So if when creating your Custom Button you plan to select the Display Checkboxes (for Multi-Record Selection) option. Then create the following Visualforce page, changing the object name and list of fields accordingly. This will ensure selected records are passed to your Flow.

<apex:page standardController="Account" tabStyle="Account" recordSetVar="AllAccounts" >
    <!-- Add below each field you reference in your Flow -->
    <apex:repeat value="{!AllAccounts}" var="row" rendered="false">
    <!-- Runs your Flow -->
    <flow:interview name="SelectedAccounts"
          finishLocation="{!URLFOR($Action.Account.Tab, $ObjectType.Account)}">
        <apex:param name="SelectedRows" value="{!Selected}"/>

IMPLEMENTATION NOTE: If you want to avoid bothering with changes between lines 3-6, simply re-query the records in the Flow using the Fast Lookup element. Thought it’s less efficient this way since your not leveraging the query made by Visualforce.

If you don’t want the ability for the users to select records and want all records, the main difference to the above is a change to the line 10, passing in the AllAccounts binding.

    <!-- Runs your Flow -->
    <flow:interview name="SelectedAccounts"
          finishLocation="{!URLFOR($Action.Account.Tab, $ObjectType.Account)}">
        <apex:param name="SelectedRows" value="{!AllAccounts}"/>

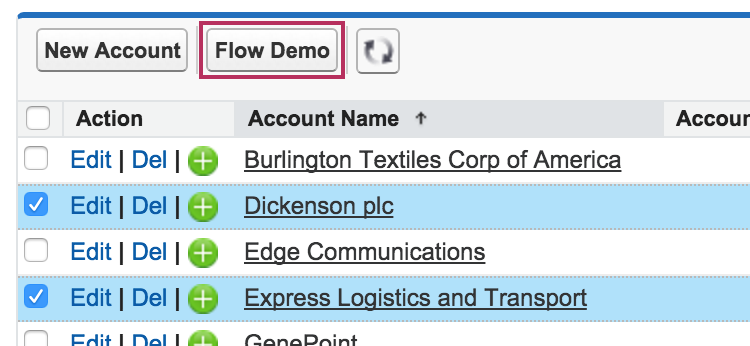

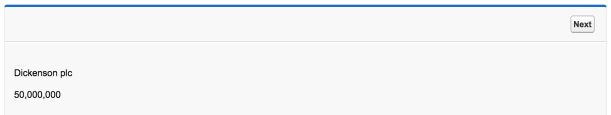

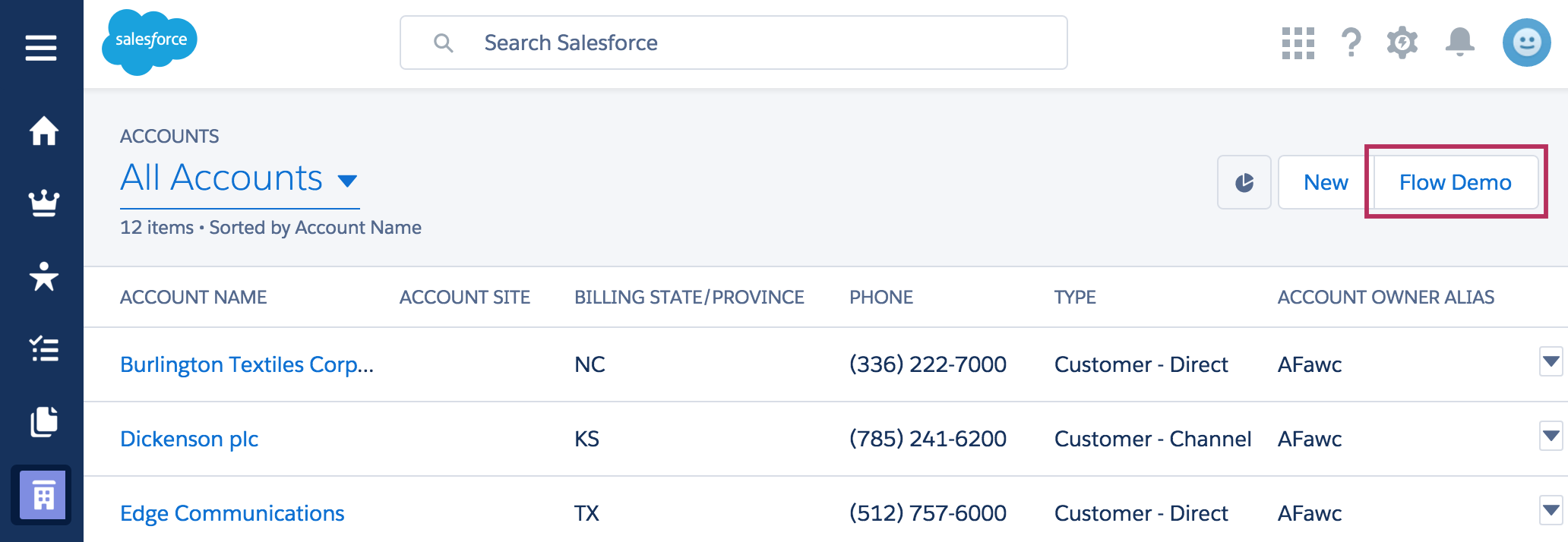

Don’t forget to add your button to the List View layout, select some records and give it a try!

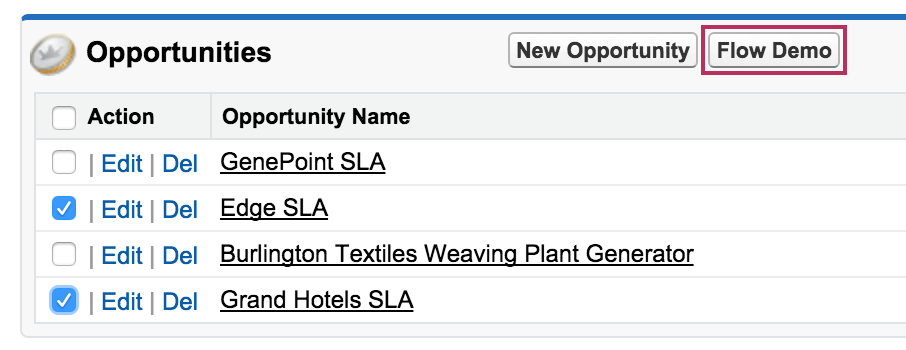

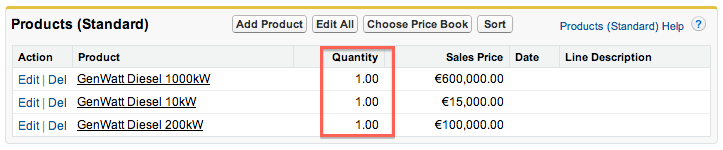

Related List Custom Button Example

In this case the Visualforce page is much the same, accept that of course your placing the associated button on the Layout of the parent object by editing the applicable related list section. The following example shows a button on the Opportunities related list on the Account object.

<apex:page standardController="Opportunity" tabStyle="Opportunity" recordSetVar="AllOpportunities">
    <!-- Add below each field you reference in your Flow -->
    <apex:repeat value="{!AllOpportunities}" var="row" rendered="false">
    <!-- Runs your Flow -->
    <flow:interview name="SelectedOpportunities"
        <apex:param name="SelectedRows" value="{!Selected}"/>


IMPLEMENTATION NOTE: Note that the above Visualforce page code uses a URL parameter retURL, which is not available in Lighting Experience. It still works, but leaves the user on the finish page.


For more information on passing values to Flows using Visualforce check out the docs here. With the exception of the retURL hack above, i’m pleased to see support in Classic and Lighting Experience. Though the later, has yet to obtain support for providing the record selection support, so only the all records use case is available.

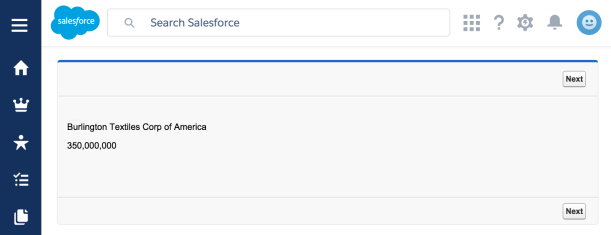

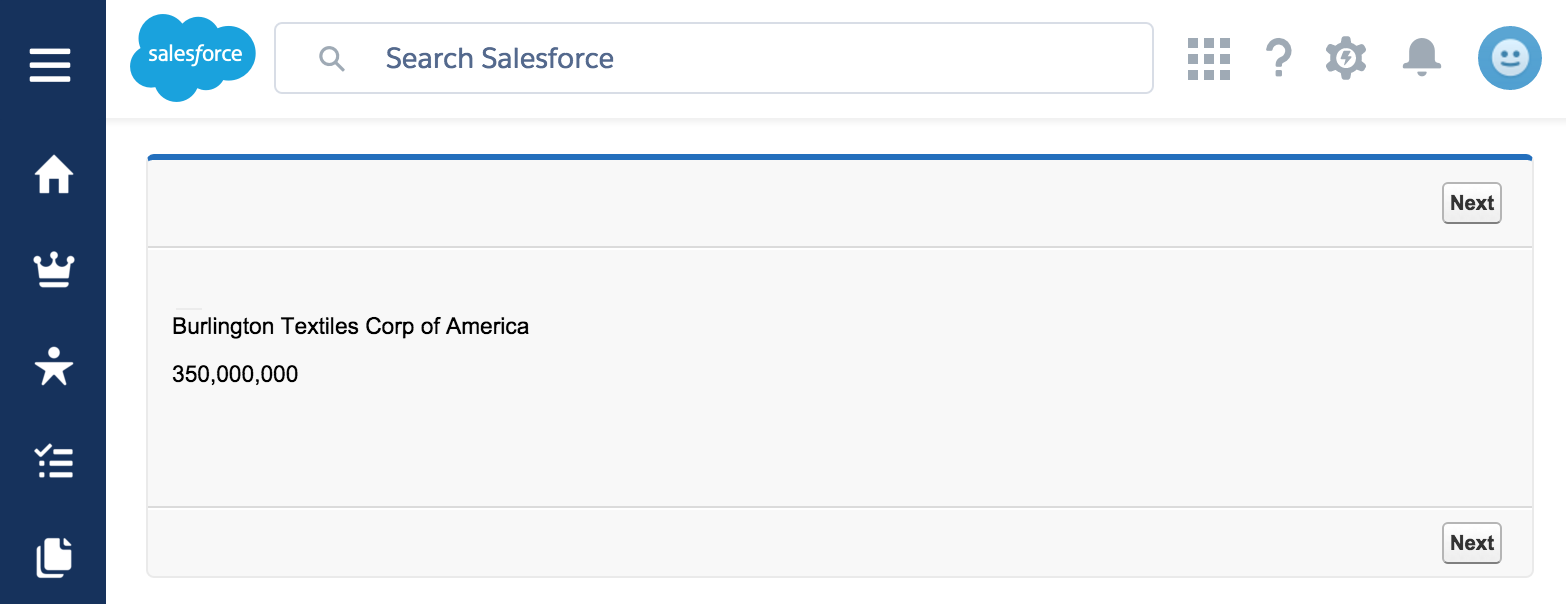

At present Visual Flow styling does not quite look at home either in Lightning Experience, which made me wonder about trying SLDS styling with Flow’s CSS customisation abilities (i will let everyone known how successful this is!)…

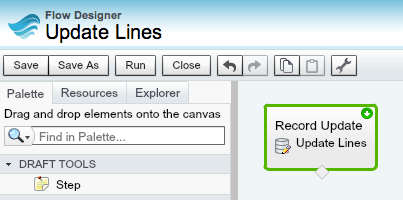

Finally both these approaches will also work equally well with Automation Flows (aka Headless Flows), just in case, as with the example in my earlier blog you just want to do some kind of calculations without prompting the user.


Creating, Assigning and Checking Custom Permissions

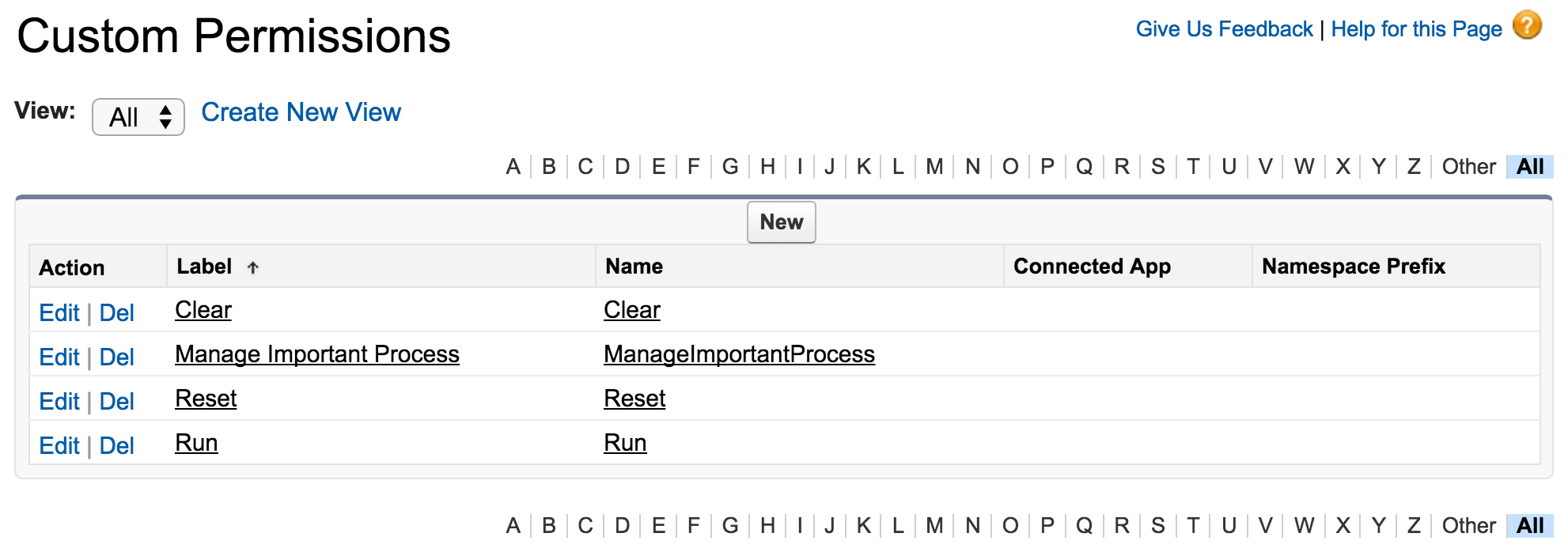

I have been wanting to explore Custom Permissions for a little while now, since they are now GA in Winter’15 i thought its about time i got stuck in. Profiles, Permission Sets have until recently, been focusing on granting permissions to entities only known to the platform, such as objects, fields, Apex classes and Visualforce pages. In most cases these platform entities map to a specific feature in your application you want to provide permission to access.

However there are cases where this is not always that simple. For example consider a Visualforce page you that controls a given process in your application, it has three buttons on it Run, Clear History and Reset. You can control access to the page itself, but how do you control access to the three buttons? What you need is to be able to teach Permission Sets and Profiles about your application functionality, enter Custom Permissions!

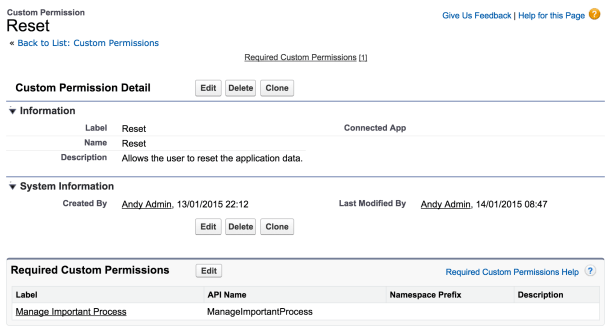

NOTE: That you can also define dependencies between your Custom Permissions, for example Clear History and Reset permissions might be dependent on a Manage Important Process  custom permission in your package.

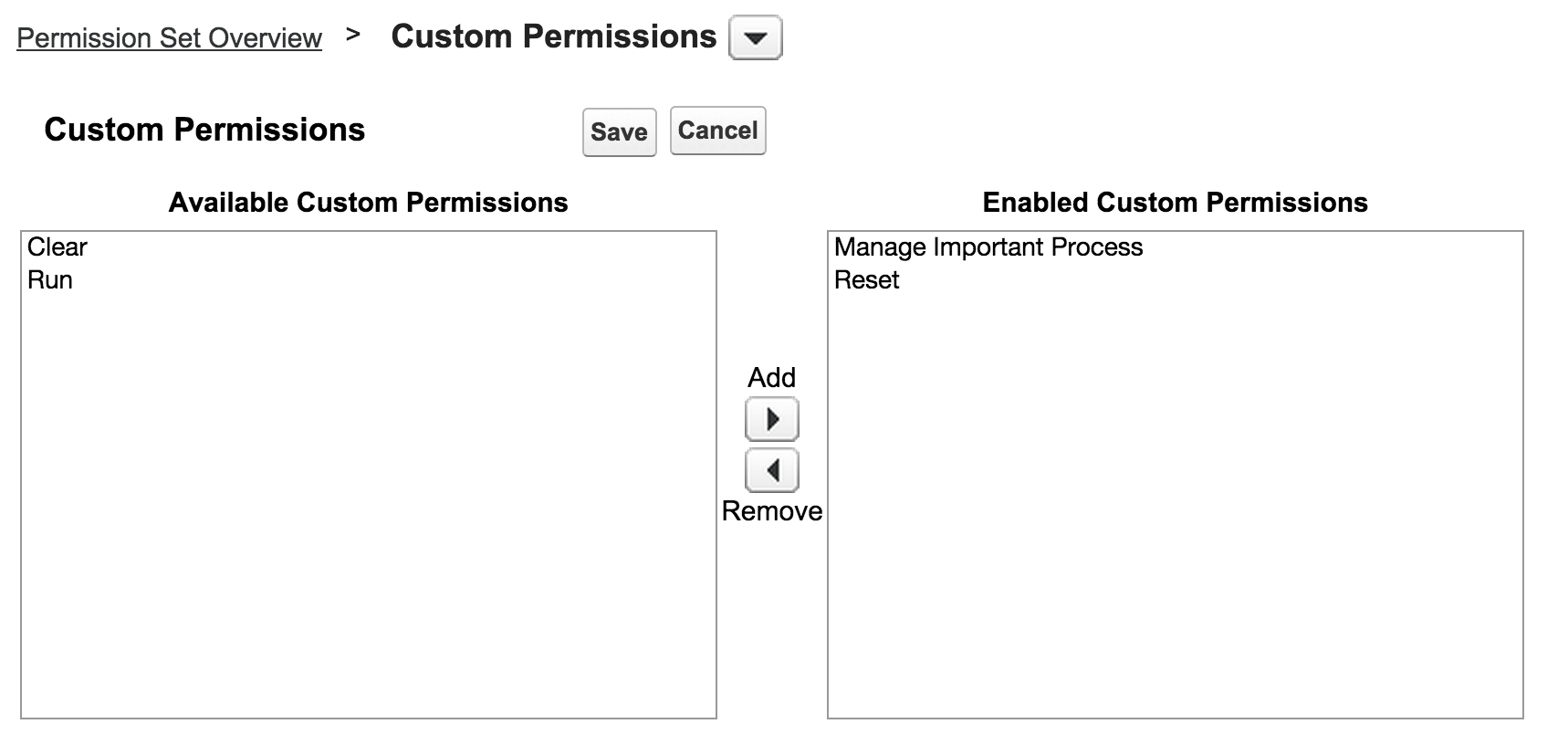

Once these have been created, you can reference them in your packaged Permission Sets and since they are packaged themselves, they can also be referenced by admins managing your application in a subscriber org.


The next step is to make your code react to these custom permissions being assigned or not.

New Global Variable $Permission

You can use the $Permission from a Visualforce page or as SFDCWizard points out here from Validation Rules! Here is the Visualforce page example given by Salesforce in their documentation.

<apex:pageBlock rendered="{!$Permission.canSeeExecutiveData}">
   <!-- Executive Data Here -->

Referencing Custom Permissions from Apex

IMPORTANT UPDATE: Since API 41 (Winter’18) there is now a native way to read Custom Permissions. The following may still be useful if you have requirements not met by the native method. FeatureManagement.checkPermission.

In the case of object and field level permissions, the Apex Describe API can be used to determine if an object or field is available and for what purpose, read or edit for example. This is not going help us here, as custom permissions are not related to any specific object or field. The solution is to leverage the Permission Set Object API to query the SetupEntityAccess and CustomPermission records for Permission Sets or Profiles that are assigned to the current user.

The following SOQL snippets are from the CustomPermissionsReader class i created to help with reading Custom Permissions in Apex (more on this later). As you can see you need to run two SOQL statements to get what you need. The first to get the Id’s the second to query if the user actually has been assigned a Permission Set with them in.

List<CustomPermission> customPermissions =
    [SELECT Id, DeveloperName
       FROM CustomPermission
       WHERE NamespacePrefix = :namespacePrefix];

List<SetupEntityAccess> setupEntities =
    [SELECT SetupEntityId
       FROM SetupEntityAccess
       WHERE SetupEntityId in :customPermissionNamesById.keySet() AND
             ParentId IN (SELECT PermissionSetId
                FROM PermissionSetAssignment
                WHERE AssigneeId = :UserInfo.getUserId())];

Now personally i don’t find this approach that appealing for general use, firstly the Permission Set object relationships are quite hard to get your head around and secondly we get charged by the platform to determine security through the SOQL governor. As a good member of the Salesforce community I of course turned my dislike into an Idea “Native Apex support for Custom Permissions” and posted it here to recommend Salesforce include a native class for reading these, similar to Custom Labels for example.

Introducing CustomPermissionReader

In the meantime I have set about creating an Apex class to help make querying and using Custom Permissions easier. Such a class might one day be replaced if my Idea becomes a reality or maybe its internal implementation just gets improved. One things for sure, i’d much rather use it for now than seed implicit SOQL’s throughout a code base!

Its pretty straight forward to use, construct it in one of two ways, depending if you want all non-namespaced Custom Permissions or if your developing a AppExchange package, give it any one of your packaged Custom Objects and it will ensure that it only ever reads the Custom Permissions associated with your package.

You can download the code and test for CustomPermissionsReader here.

// Default constructor scope is all Custom Permissions in the default namespace
CustomPermissionsReader cpr = new CustomPermissionsReader();
Boolean hasPermissionForReset = cpr.hasPermission('Reset');

// Alternative constructor scope is Custom Permissions that share the
//   same namespace as the custom object
CustomPermissionsReader cpr = new CustomPermissionsReader(MyPackagedObject.SObjectType);
Boolean hasPermissionForReset = cpr.hasPermission('Reset');

Like any use of SOQL we must think in a bulkified way, indeed its likely that for average to complex peaces of functionality you may want to check at least two or more custom permissions once you get started with them. As such its not really good practice to make single queries in each case.

For this reason the CustomPermissionsReader was written to load all applicable Custom Permissions and act as kind of cache. In the next example you’ll see how i’ve leveraged the Application class concept from the Apex Enterprise Patterns conventions to make it a singleton for the duration of the Apex execution context.

Here is an example of an Apex test that creates a PermissionSet, adds the Custom Permission and assigns it to the running user to confirm the Custom Permission was granted.

	private static void testCustomPermissionAssigned() {

		// Create PermissionSet with Custom Permission and assign to test user
		PermissionSet ps = new PermissionSet();
		ps.Name = 'Test';
		ps.Label = 'Test';
		insert ps;
		SetupEntityAccess sea = new SetupEntityAccess();
		sea.ParentId = ps.Id;
		sea.SetupEntityId = [select Id from CustomPermission where DeveloperName = 'Reset'][0].Id;
		insert sea;
		PermissionSetAssignment psa = new PermissionSetAssignment();
		psa.AssigneeId = UserInfo.getUserId();
		psa.PermissionSetId = ps.Id;
		insert psa;

		// Create reader
		CustomPermissionsReader cpr = new CustomPermissionsReader();

		// Assert the CustomPermissionsReader confirms custom permission assigned
		System.assertEquals(true, cpr.hasPermission('Reset'));

Seperation of Concerns and Custom Permissions

Those of you familiar with using Apex Enterprise Patterns might be wondering where checking Custom Permission fits in terms of separation of concerns and the layers the patterns promote.

The answer is at the very least in or below the Service Layer, enforcing any kind of security is the responsibility of the Service layer and callers of it are within their rights to assume it is checked. Especially if you have chosen to expose your Service layer as your application API.

This doesn’t mean however you cannot improve your user experience by using it from within Apex Controllers,  Visualforce pages or @RemoteAction methods to control the visibility of related UI components, no point in teasing the end user!

Integrating CustomerPermissionsReader into your Application class

The following code uses the Application class concept i introduced last year and at Dreamforce 2014, which is a single place to access your application scope concepts, such as factories for selectors, domain and service class implementations (it also has a big role to play when mocking).

public class Application {

	 * Expoeses typed representation of the Applications Custom Permissions
	public static final PermissionsFactory Permissions = new PermissionsFactory();

	 * Class provides a typed representation of an Applications Custom Permissions
	public class PermissionsFactory extends CustomPermissionsReader
		public Boolean Reset { get { return hasPermission('Reset'); } }

This approach ensures their is only one instance of the CustomPermissionsReader per Apex Execution context and also through the properties it exposes gives a compiler checked way of referencing the Custom Permissions, making it easier for application developers code to access them.

  // Do something to do with Reset...

Finally, as a future possibility, this approach gives a nice injection point for mocking the status of Custom Permissions in your Apex Unit tests, rather than having to go through the trouble of setting up a Permission Set and assigning it in your test code every time as shown above.

Call to Action: Ideas to Upvote

While writing this blog I created one Idea and came across a two others, i’d like to call you the reader to action on! Please take a look and of course only if you agree its a good one, give it the benefit of your much needed up vote!



Super ListView Viewer using Winter’15 ListView API

Salesforce continues its drive to push out great platform API’s, while Winter’15 was a little lighter than usual, the List View API did catch my eye! It’s available currently in SOAP and REST flavours, sadly as yet no Apex, though I’ve seen Salesforce follow up in later releases with Apex support, so fingers crossed! This omission didn’t stop me exploring the REST variant via Visualforce and JQuery!

I’ve written a few applications that leverage List Views to provide a readily available filter criteria for various uses. One approach used the StandardSetController in Apex (via the setFilterId method) and another by reading the object definition (using Metadata API), parsing the List View definition and building my own SOQL query! This later strategy can now be replaced with the new List View API, as amongst giving you the List View definition and the records behind it, you also get hold of the SOQL query Salesforce uses as well!

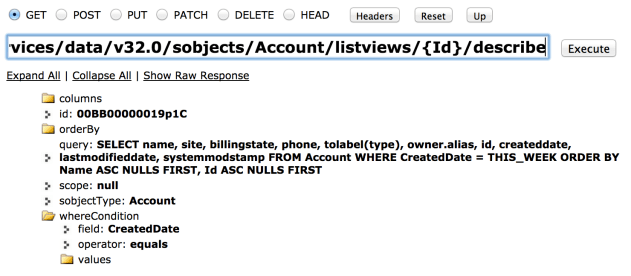

The REST API version provides the following resources to call..

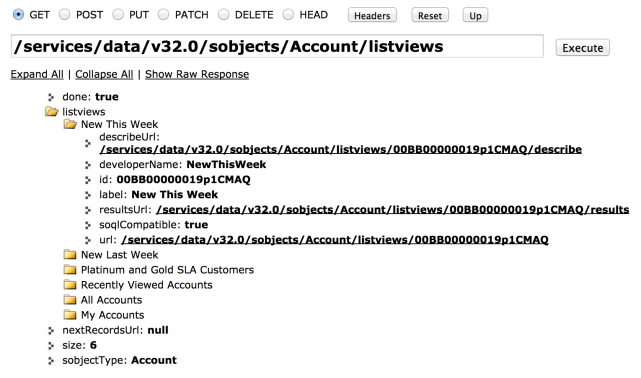

  • /services/data/v32.0/sobjects/Account/listviews – Lists the List Views associated with the object and their Id’s (click the link to try it out in Developer Workbench!). Documentation here.
  • /services/data/v32.0/sobjects/Account/listviews/{Id}/describe – Returns the definition of the List View and the SOQL! Documentation here.

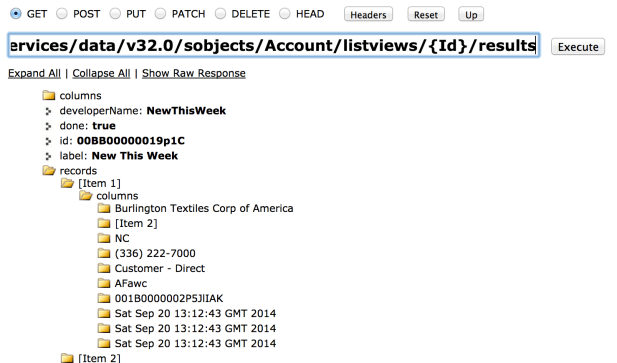

  • /services/data/v32.0/sobjects/Account/listviews/{Id}/results – Returns the column definitions of the List View and the records it returns. Documentation here.

While exploring the SOQL used by ListViews, i noticed something i had not seen before in the SOQL syntax, the USING SCOPE clause, also new to Winter’15. Recently View Accounts and My Accounts views leverage this new clause…

SELECT name, site, billingstate, phone, tolabel(type),
  owner.alias, id, createddate, lastmodifieddate, systemmodstamp
FROM Account

The above shows ‘mru’ and the following example shows ‘mine’…

SELECT name, site, billingstate, phone, tolabel(type),
  owner.alias, id, createddate, lastmodifieddate, systemmodstamp
FROM Account

The documentation is a bit weak presently on the other values, this knowledge base article, lists Everything, Mine, Queue, Delegated, MyTerritory, MyTeamTerritory or Team, but not MRU at present.

So to give these API’s a better shake down i decided to flex my JavaScript side this time, knowing that its possible to call these API’s from the Visualforce Domain without issue, its a matter of making a JavaScript call and interpreting the results. Thus Super ListView Viewer was born! With a little help from the frankly amazing JQuery plugin known as DataTable, which replicates as far as I can see the standard List View UI and then some!

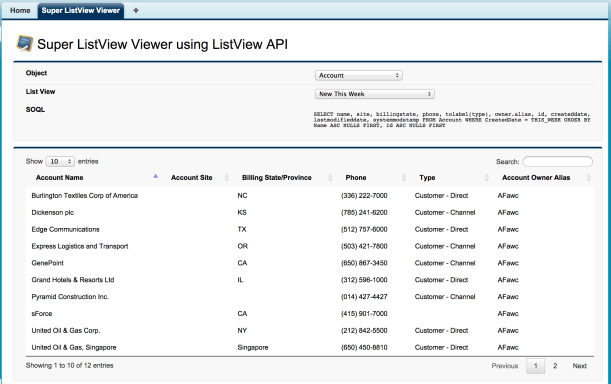

This page allows you to select any object and if it has associated List View’s view them!


JQuery provices some excellent AJAX support, this code reads the SOQL query and displays it on the page…

// List View describe to take a look at the SOQL!
	url : '/services/data/v32.0/sobjects/' + objectName + '/listviews/' + listViewId + '/describe',
	headers : { 'Authorization' : 'Bearer {!$Api.Session_ID}' },
	datatype : 'json',
	success : function(data, textStatus, jqXHR) {

This code builds a regular HTML table and then in a single line turns it into the amazing DataTable, I was quite amazed when i added this library, seriously cool!

// Call the List View API to get the results (also includes column definitions)
	url : '/services/data/v32.0/sobjects/' + objectName + '/listviews/' + listViewId + '/results',
	headers : { 'Authorization' : 'Bearer {!$Api.Session_ID}' },
	datatype : 'json',
	success : function(data, textStatus, jqXHR) {

		// Clear current List View info

		// Create the table and add columns
		var table = $('<table></table>');
		var thead = $('<thead></thead>');
		var theadtr = $('<tr></tr>');
		$.each(data.columns, function(index, column) {
				theadtr.append($('<th>' + column.label + '</th>'));

		// Add the rows
		var tbody = $('<tbody></tbody>');
		$.each(data.records, function(rowIndex, record) {
			var tbodytr = $('<tr></tr>');
			$.each(record.columns, function(colIndex, column) {
					tbodytr.append($('<td>' +
					 (record.columns[colIndex].value!=null ?
					  record.columns[colIndex].value : '') + '</td>'));

		// Enhance this boring old HTML table with JQuery DataTable!
		var dataTable = table.DataTable();

You can find the full source code for this here. Of course if you had need to call this API from Apex, you can make an outbound HTTP callout, after having set up the Remote Site to allow Salesforce to call itself…



Clicks not Code with Visual Flow Custom Buttons

officehoursI attended an MVP Office Hours event last Friday which has lead to this blog. If your not aware this a weekly event run by fellow MVP’s Jarrod Kingston and Joshua Hoskins, which is a kind of open hour for anybody to pose admin or developer related questions to the MVP community. Last weeks was a great learning event for all involved, i would recommend dropping by, even if its just to ease drop, though there is no reason to be shy!

One question that was raised, was as if a Workflow Rule defined on an Opportunity Product Line could be started via a Custom Button at the Opportunity level. When clicked would effectively update the lines to run the Workflow Rule, in this case an Email Workflow. Ideally without JavaScript or having to resort to Apex. So can record, create, read, update and delete be done in a code free way? Read on...

FlowUpdateBeing very excited about the possibility of invoking the hugely under stated Visual Flow rules from a Workflow Rule in Spring’14 (Pilot only). I pretty much have Flow on my mind at the moment! So started pondering if any of the Flow “elements” that are capable of reading and writing to custom object records would do the trick? Since i knew we already run a Flow from a Custom Button. I continued to ponder after the call and today managed to confirm that it is indeed possible accomplish the requirement with a astonishingly simple Flow, in fact so simple its one element!

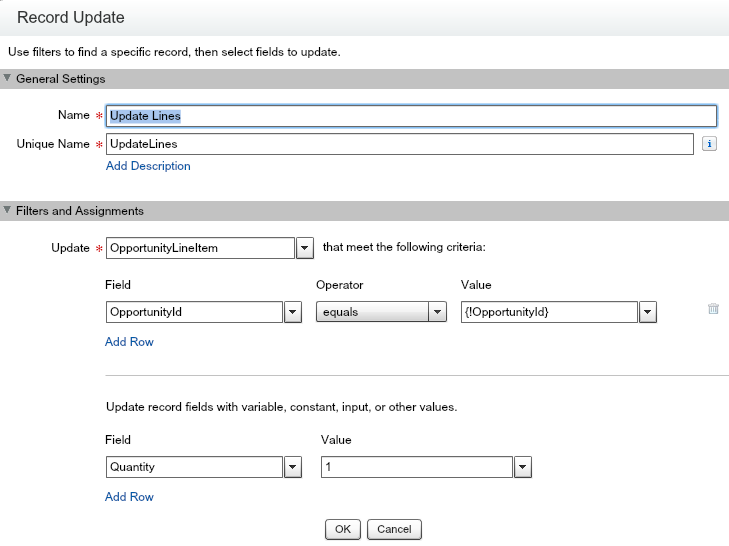

The Record Update flow element allows you to query a Standard or Custom object with some criteria and then update the results rows based on fixed or variable values you define (again via the point and click Flow Designer). My test was simple, could i set the Quantity to 1 for all the lines, though much more complex filtering and updates are possible. The configuration of the Update Lines element looks like this.


The {!OpportunityId} expression refers to a Flow variable, which i would later populate from my Custom Button. As you can see both the Filters and Assignments support addition rows, so this example is really a very basic one. Note that it has none of the Screen or Choice elements Flow supports, its just performing an update action, that’s all. Making sure i set it as the Start element by hovering over it and click the green icon. I then saved and started to figure out the best way to go about running it from a Custom Button.

The first option i looked at was the URL option, via a URL Custom Button, this was easy enough and i could pass the OpportunityId parameter via a a URL parameter. The issue with this, is when the Flow completes returning the user to the Opportunity page. The solution eventually was to wrap the Flow in a small Visualforce page (so ok i tiny bit of code i confess, but you really don’t have to touch this at all after you create it) then point the Custom Button to that instead.

<apex:page standardController="Opportunity">
    <flow:interview name="UpdateLines" finishLocation="/{!Opportunity.Id}">
        <apex:param name="OpportunityId" value="{!Opportunity.Id}"/>


This allowed me to use the finishLocation attribute to define a URL that the Flow would navigate to after it completed. Since I have no “visual” aspects to my Flow, it simply executed the Update Records element and performed the redirect back to Opportunity detail page immediately. So once i defined my button and put it on the layout, i was ready to give it a go!

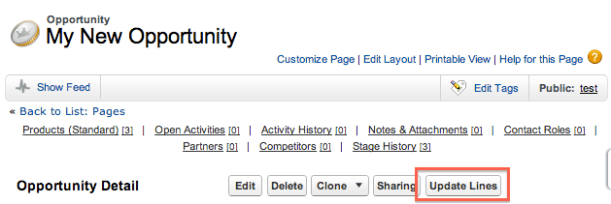

It works great, really well in fact!



NOTE: If your concerned about security regarding CSRF, technically the recommendation above would be to present the user with a Flow Screen element asking them to confirm before proceeding. I’ve left this out here as i know its not always everyones preference visually to have what might be viewed as a annoying confirmation prompt following the button press.

Flow supports other data manipulation elements (in addition to many UI elements), such as Lookup, Create and Delete you can configure using its drag and drop editor. So if you fancy an alternative to hacking around with JavaScript Custom Buttons or want to avoid needing developers to write you Apex code for simple updates, i recommend you try this out (there is a great two part blog here and here and also workbook).

Certainly once Salesforce unleash (the both exciting and slightly scary) power of using these from Workflow Rules, you’ll be missing out on a significant new “Clicks Not Code” trick if you don’t!

Detailed Steps to Recreate above Demo

  1. Under Setup menu, under Workflow and Approvals, click Flows.
  2. Create a new Flow and drag the Update Records element from the palette and give it a name (anything will do) and description.
  3. Complete the Update Record element configuration as shown above, when prompted for the Value to select by the OpportunityId, click the drop down menu and select CREATE NEW Variable.
  4. Complete the Variable element configuration as shown below, take note to enter the variable name correctly, this will be referenced on the Visualforce page used to run the flow.
  5. Click to highlight the Update Records element on the Flow design canvas, then click the green icon in its top right corner to make this element the Start element.
  6. Save the Flow and make it Active (clicking the Activate link next to it on the Flow detail page), take note of the Flow name used (defaults to the description with underscores for spaces).
  7. Create a Visualforce page via Setup, then Develop, then Pages, paste in the sample Visualforce page shown above, taking note to use correct Flow name and Flow parameter names.

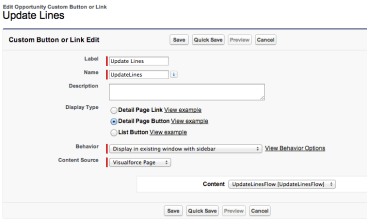

  8. Create a Custom Button as shown in the screenshot above and add it to the Layout
  9. Press the button and enjoy your code free creation!


Spring’14 Visualforce Remote Objects Introduction

Salesforce have provided further support for JavaScript in the upcoming Spring’14 release. With a new flavour of the popular Visualforce Remoting facility. Visualforce Remote Objects is a pilot feature I have been trying out in a pre-release org. It’s aim is effectively to make performing database operations, like create, read, update and delete in JavaScript as easy as possible without the need for Apex, and without consuming the orgs daily API limits. This blog introduces the feature and contrasts it with its very much still relevant Visualforce Remoting brother.

Consider a master detail relationship between WorkOrder__c and WorkOrderLineItem__c. The first thing you need to do is declare your intent to access these objects via JavaScript on your Visualforce page with some new tags.

	<apex:remoteObjects >
	    <apex:remoteObjectModel name="WorkOrder__c" fields="Id,Name,AccountName__c,Cost__c"/>
	    <apex:remoteObjectModel name="WorkOrderLineItem__c" fields="Id,Name,Description__c,Hours__c,WorkOrder__c"/>

The following JavaScript can now be used to access the JavaScript objects the above automatically injects into the page (note that while not shown there is further control over object and field naming, i used the defaults here).

It is an async API, so you provide a function call back to handle the result of the operations (create, update, delete and select are supported), it does not throw exceptions. In the example below if the insert of the Work Order master record is successful the child is then inserted. Note the event parameter actually contains the Id of the inserted record.

		function doSomethingJS(answer)
			// Create work order
			var workOrder = new SObjectModel.WorkOrder__c();
			workOrder.set('Cost__c', answer * 100);
			workOrder.create(function(error, result, event)
					// Success?
					if(error == null)
						// Create work order line item
						var workOrderLineItem = new SObjectModel.WorkOrderLineItem__c();
						workOrderLineItem.set('Description__c', 'Answering the question');
						workOrderLineItem.set('Hours__c', answer);
						workOrderLineItem.set('WorkOrder__c', result[0]);
						workOrderLineItem.create(function(error, result, event)
								// Errors?
							} );
					// Display error
				} );

As per the documentation, this means you no longer need an Apex controller to do this. You can also query using this object model as well, as per this the pre-release documentation querying a Wharehouse object. However before we cast aside our Apex thoughts, lets look at what the above would like implemented via a Remote Action.

		function doSomethingApex(answer)
			// Create work order and line item via Apex
				function(result, event){
					alert(event.status ? 'Success' : event.message);

The following Apex code implements the remote action.

	public static void doSomething(Integer answer)
		WorkOrder__c workOrder = new WorkOrder__c();
		workOrder.AccountName__c = '';
		workOrder.Cost__c = answer * 100;
		insert workOrder;
		WorkOrderLineItem__c workOrderLineItem = new WorkOrderLineItem__c();
		workOrderLineItem.Description__c = 'Answering the question';
		workOrderLineItem.Hours__c = answer;
		workOrderLineItem.WorkOrder__c = workOrder.Id;
		insert workOrderLineItem;

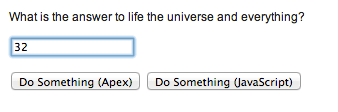

On the face of it, it may appear both accomplish the same thing, but there is a very important and critical architecture difference between them. To help illustrate this i created a page to invoke both of these options. Screen Shot 2014-01-22 at 08.48.56

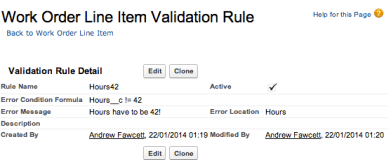

Screen Shot 2014-01-22 at 09.03.07While also creating a strategically placed  Validation Rule on the Work Order Line item, one which would fail the insert if anything other than 42 was entered in the UI.

So given the validation rule in place, lets perform a test.

  1. Ensure there are no Work Order records present
  2. Enter an invalid value, say 32, click the buttons, observe the expect error
  3. Correct the value to 42, click the button again and observe the outcome on the database.
  4. The expected result is one Work Order record with a single Work Order Line Item record.

Testing the ‘Do Something (Apex)’ Button

After going through the test above, the button initially gives the error as expected…

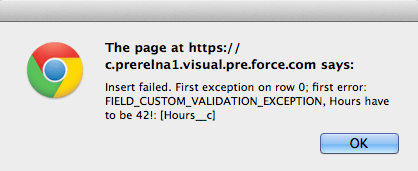

Screen Shot 2014-01-22 at 09.00.05

When the value is corrected and button pressed again, the result is this…

Screen Shot 2014-01-22 at 08.54.07

The test passed.

Testing the ‘Do Something (JavaScript)’ Button

Going through the tests again, this button initially gives the error as expected…

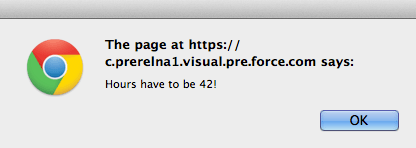

Screen Shot 2014-01-22 at 09.00.25

When the value is corrected and button pressed again, the result is this…

Screen Shot 2014-01-22 at 08.56.54
While Visualforce Remote Objects technically performed as I believe Salesforce intended, this functional tests expectation failed. Since we have two Work Order records, one with no Work Order Lines and one that is what we expected. So why did this additional rogue Work Order record get created, what did we do wrong?

The answer lies in the scope of the database transaction created…

  • In the Visualforce Remote @RemoteAction use case the platform automatically wraps a transaction around the whole of the Apex code and rolls back everything if an error occurs, you can read more about this here.
  • In the Visualforce Remote Objects use case the database transaction is only around the individual database operations not around the whole JavaScript function. Hence by the time the Work Order Line Item fails to insert the Work Order has already been committed to the database. The user then corrects their mistake and tries again, hence we end up with two Work Orders and not one as the user expected.

Since Apex transaction management is so transparent most of the time (by design), its likely that the same assumption might be made of Remote Objects, however as you can see its not a valid one. Those of you that know core thoughts on patterns will also be thinking something else at this point, that presents a potentially even more compelling reason to be watchful over what logic you implement this way…

Separation of Concerns

As you may have gathered by now if you’ve been reading my blog for the last year, my other passion is Apex Enterprise Patterns. A key foundation of this is Separation of Concerns or SOC for short. SOC sees us layer our code so that aspects such as business logic are located in the same place, easily accessible and reusable (not mention easily testable) from other existing and future parts of our applications, such as API’s, Batch Apex etc.

While the above example is not that complex it illustrates when code in your JavaScript layer might start to become business logic and if so something you should ideally (if not solely for the reason above) consider keeping in your Service Layer and accessing via JavaScript Remoting @RemoteAction.


Despite this new feature the use of Visualforce Remoting with @RemoteAction Apex should still very much factor in your decision making.  And nor despite the issue above should we necessarily let the lack of transaction management count against our use of Visualforce Remote Objects either.

For sure this will become the best and lightest way to perform rapid client side querying without impacting API limits, and I am sure the alias feature (see docs) will be welcome to those preferring more elegant AngularJS or other bindings. All very nice! Furthermore if you are developing client logic that is essentially doing simple record editing then by all means let your Apex Triggers (Domain Layer) do its job and enforce the validity of those records.

Just keep in mind when your starting to write more and more JavaScript code that is orchestrating the updating, inserting or deleting of a set of  related records, you really need to be sure be sure you and your testers understand the transaction scope differences between the two approaches described here or switch over to Apex and let the platform manage the transaction scope for you. Finally its worth keeping in mind if you don’t have a client side automated testing strategy your automatically adding manual testing overhead to your backlog.

The full source code for this blog can be found here.

UPDATE: Since publishing this blog, Salesforce documentation team have written up an excellent additional topic covering some best practices and outlining the transactional differences described above. Its really great to see this type of content appearing in the standard Salesforce developer documentation, thank you Salesforce!

Other Notes and Observations

Here are some final points of note, given this is still pilot hopefully of use to Salesforce as feedback.

  • It does buffer requests to the server like Visualforce Remoting, very cool!
  • It does not complain when you set the wrong field or get the name wrong, like SObject.put and SObject.get do, maybe to be expected, though since we gave it the field list might have been nice?
  • It differs slightly from Dynamic Apex, it uses SObject.put, here WorkOrder__c.set is used
  • Success is expressed in ‘error’ being null, not quite what i expected, and different from Visualforce Remoting.
  • It does not implement field defaulting
  • Errors need to be hanlded by callbacks (as per VF Remoting), though by default errors are not emitted to the JavaScript console like Visualforce Remoting
  • References to fields on via the apex:remoteObjectModel fields attribute do not seem to surface as dependencies on the fields, which would be good given how soft references within the JavaScript are.
