Preview : Apex Enterprise Patterns – Domain Layer

3 Comments

I’ve been busy writing the next article in my series on Apex Enterprise Patterns. This weekend I completed the draft for review before submitting to Force.com. Its the biggest article yet, with over three and half thousand words. And an update to the Dreamforce 2012 sample code to support some additional OO and test aspects I wanted to highlight.

The following is a sneak preview of the upcoming article. Also if your interested in taking a look at some of the updated sample code you’ll find this in the Github repo here. Enjoy!

Domain Model, “An object model of the domain that incorporates both behavior and data.”, “At its worst business logic can be very complex. Rules and logic describe many different cases and slants of behavior, and it’s this complexity that objects were designed to work with…” Martin Fowler, EAA Patterns

Who uses the Domain layer?

There are two ways in which “Domain layer logic” is invoked.

  • Database Manipulation. CRUD operations, or more specifically Create, Update and Delete operations, occur on your Custom Objects. As users or tools interact via the standard Salesforce UI or via one of the platforms API’s. These can be routed to the appropriate Domain class code corresponding to that object and operation.

  • Service Operations. The Service layer implementations should be easily able to identify and reuse code relating to one or more of the objects each of its operations interact with via Domain classes. This also helps keep the code in the service layer focused on orchestrating whatever business process or task its exposing.

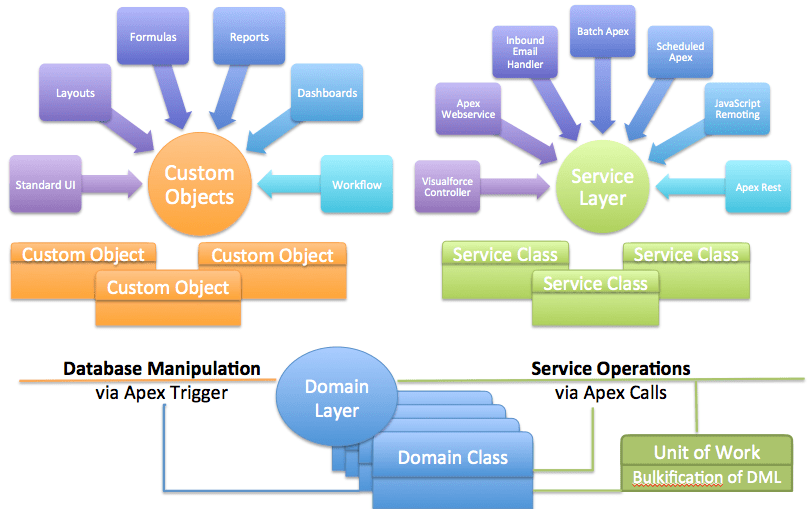

This diagram brings together the Service Layer and Domain Layer patterns and how they interact with each other as well other aspects of the application architecture.

Screen Shot 2013-04-07 at 12.21.32

To be continued on developer.force.com….
